Cisco C20

The Cisco Quick Set C20 is a low cost, TelePresence system designed to enable widespread use of video conferencing without large expense.

The C20's design is intended to deliver TelePresence at low cost and as such, the C20 video codec is ideal for use in small conference rooms where the factors of video clarity and ease of use are required. This system can be configured for Standard or High Definition, further enabling economy. With 4 audio inputs and 3 audio outputs, this system can accommodate two XLR microphones and other audio inputs as well (such as from a mixer, a PC or a telephone hybrid). In addition to its audio inputs and outputs, the C40 also includes 2 distinct video inputs and 2 outputs [Inputs include one each of HDMI and DVI-I / Outputs are both HDMI]. This codec is intended for small conference rooms and remote offices and it enables them to become part of the overall video network architecture of a large organization.

cisco c20 thumbnail
tcisco c20 thumbnail
See larger image

Key Differentiators of the C20:

  • Low cost TelePresence solution
  • Designed for ease of setup and use
  • Economical design allows for SD only or HD configuration
  • Optimal definition up to 1080p interactive video conferencing
  • Form factor is a small appliance suitable for mounting on a shelf
  • Includes 2 Mic Audio Inputs plus 2 RCA Audio Inputs (4 total)
  • Includes 2 RCA and 1 HDMI Audio Outputs (3 total)
  • Includes 2 Video Inputs and 2 Video Outputs
  • Optional 4x or 12x zoom PTZ camera
  • Includes H.460 Firewall traversal technology
  • Up to 6Mbps point-to-point bandwidth capacity
  • Dual Stream video H.239 capability
  • Optional two monitor support

Please contact our sales team for information on Cisco C20 or other video conferencing products at 1.800.216.3476 or email sales@tkoworks.com


Design features
  • Transforms a flat panel display into a 1080p high-definition meeting space
  • Simple, intuitive connections make set up as easy as connecting a DVD player
  • Cisco TelePresence System Quick Set C20 provides up to 1080p30 and 720p60 resolution Standardscompliant 1080p solution - compatible with standards-based video without loss of features
  • Sleek, compact design
Application features
  • Share multimedia and presentations at the touch of a button
  • Basic API available over IP (Telnet or SSH)
  • Dual-display option available
  • HD content sharing with 720p and WXGA
Performance features
  • Optimal definition up to 1080p30/720p60
  • H.323/SIP up to 6 Mbps
  • Takes advantage of the Cisco® TelePresence Total Solution, including Cisco TelePresence Multiway, recording and streaming and firewall traversal services
  • Can be supported on the Cisco WebEx Telepresence network

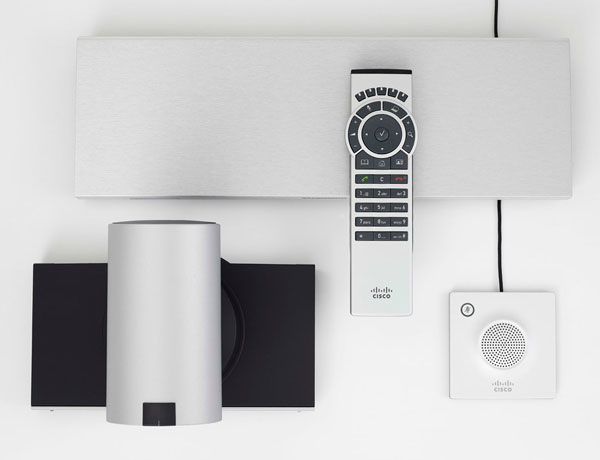

Set Delivered Complete With:
  • Codec C20, Cisco TelePresence PrecisionHD Camera - 1080p4x or Cisco TelePresence PrecisionHD Camera - 1080p12x, Cisco TelePresence Precision MIC 20, remote control, cables and power supply
Bandwidth
  • H.323/SIP up to 6 Mbps point-to-point
Minimum bandwidth for resolution/frame rate
  • 720p30 from 768 kbps
  • 720p60 from 1152 kbps
  • 1080p30 from 1472 kbps
Firewall Traversal
  • Cisco TelePresence Expressway Technology
  • H.460.18, H.460.19 Firewall Traversal
Video Standards
  • H.261, H.263, H.263+, H.264
Video Features
  • Native 16:9 Widescreen
  • Advanced Screen Layouts
  • Intelligent Video Management
  • Local Auto Layout
Video Inputs (2 Inputs)
    1 X HDMI Inputs, Supported Formats:
  • 1920 x 1080@60 fps (1080p60)
  • 1920 x 1080@50 fps (1080p50)
  • 1920 x 1080@30 fps (1080p30)
  • 1920 x 1080@25 fps (1080p25)
  • 1280 x 720@60 fps (720p60)
  • 1280 x 720@50 fps (720p50)
  • 640 x 480@60 fps (480p60)
  • 800 x 600@60 fps (SVGA)
  • 1024 x 768@60, 70, 75, 85 fps (XGA)
  • 1280 x 1024@60, 75 fps (SXGA)
  • 1 X DVI-I Inputs, Supported Formats:
    Analog (VGA):
  • 1920 x 1080@60 Hz (1080p)
  • 1280 x 720@60 Hz (720p)
  • 1600 x 1200@60 Hz (UXGA)
  • 1280 x 1024@60, 75 Hz (SXGA)
  • 1280 x 960@60 Hz
  • 1024 x 768@60, 70, 75, 85 Hz (XGA)
  • 1920 x 1200@50 Hz (WUXGA)
  • 1680 x 1050@60 Hz (WSXGA+)
  • 1440 x 900@60 Hz (WXGA+)
  • 1280 x 800@60 Hz (WXGA)
  • 1280 x 768@60 Hz (WXGA)
  • Digital (DVI-D):
  • 1920 x 1080@60 fps (1080p60)
  • 1920 x 1080@50 fps (1080p50)
  • 1920 x 1080@30 fps (1080p30)
  • 1920 x 1080@25 fps (1080p25)
  • 1280 x 720@60 fps (720p60)
  • 1280 x 720@50 fps (720p50)
  • 640 x 480@60 fps (480p60)
  • 800 x 600@60 fps (SVGA)
  • 1024 x 768@60, 70, 75, 85 fps (XGA)
  • 1280 x 1024@60, 75 fps (SXGA)
Video Outputs (2 Outputs)
    2 x HDMI Output, Supported Formats:
  • 1920 x 1080@60fps (1080p60)
  • 1280 x 720@60fps (720p60)
  • 1366 x 768@60fps (WXGA)
  • 1280 x 768@60fps (WXGA)
  • 1024 x 768@60fps (XGA)
  • 1280 x 1024@60fps (SXGA)
  • 640 x 480@60fps (VGA)
  • 800 x 600@60fps (SVGA)
  • Live Video Resolutions (Encode/Decode):
  • 176 x 144@30, 60fps (QCIF)
  • 352 x 288@30, 60fps (CIF)
  • 512 x 288@30, 60fps (w288p)
  • 576 x 448@30, 60fps (448p)
  • 768 x 448@30, 60fps (w448p)
  • 704 x 576@30, 60fps (4CIF)
  • 1024 x 576@30, 60fps (w576p)
  • 640 x 480@30, 60fps (VGA)
  • 800 x 600@30, 60fps (SVGA)
  • 1024 x 768@30fps (XGA)
  • 1280 x 768@30fps (WXGA)
  • 1280 x 720@30, 60*fps, HD72060)
  • 1920 x 1080@30fps (HD1080p30)
Audio Standards
  • G.711, G.722, G.722.1, 64 bit MPEG4 AAC-LD
Audio Features
  • CD-Quality 20KHz Mono
  • 1 acoustic echo canceller
  • Automatic Gain Control (AGC)
  • Automatic Noise Reduction
  • Active lip synchronization
Audio Inputs (4 Inputs)
  • 2 x microphone, 4-pin MiniJack
  • 2 x RCA/Phono (mixed to mono)
Audio Outputs (3 Outputs
  • 2 x RCA/Phono (dual mono)1 x HDMI, (digital main audio)
Dual Stream
  • H.239 (H.323) dual stream
  • BFCP (SIP) dual stream
  • Support resolutions up to WXGA (1280 x 768)
  • When Dual video stream is activated the main video
MultiPoint Support
  • Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS] and Cisco TelePresence MCU)
  • Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS)
Protocols
  • H.323
  • SIP
Embedded Encryption
  • H.323/SIP point-to-point
  • Standards-based: H.235 v2 & v3 and AES
  • Automatic key generation and exchange
  • Supported in Dual Stream
IP Network Features
  • DNS lookup for service configuration
  • Differentiated Services (QoS)
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lip-sync buffering
  • H.245 DTMF tones in H.323
  • Date and Time support via NTP
  • Packet Loss-based Downspeeding
  • URI Dialing
  • TCP/IP
  • DHCP
  • 802.1x network authentication
Security Features
  • Management via HTTPS and SSH
  • IP Administration Password
  • Menu Administration Password
  • Disable IP services
  • Network Settings protection
Network Interfaces
  • 1 x LAN/Ethernet (RJ-45) 10/100/1000 Mbit
Other Interfaces
  • USB host for future usage
Cisco TelePresence PrecisionHD Camera - 1080p12x
  • 1/3" CMOS
  • 12 x zoom
  • +15�°/-25�° tilt, +/- 90�° pan
  • 43.5�° vertical field of view
  • 72�° horizontal field of view
  • Focus distance 0.3m-infinity
  • 1920 x 1080 pixels progressive @ 60fps
  • Other formats supported (configurable through Dip-switch):
    • 1920 x 1080@60 fps (HDMI only),
    • 1920 x 1080@50 fps (HDMI only),
    • 1920 x 1080@30 fps,
    • 1920 x 1080@25 fps,
    • 1280 x 720@60 fps,
    • 1280 x 720@50 fps,
    • 1280 x 720@30 fps,
    • 1280 x 720@25 fps
  • Automatic or manual focus/brightness/white balance
  • Far-end camera control
  • Dual HDMI and HD-SDI output
  • Upside-down mounting with automatic flipping of picture
Cisco TelePresence PrecisionHD Camera - 1080p4x
  • 1/3" CMOS
  • 4 x zoom +15�°/-25�° tilt, +/- 90�° pan
  • 43.5�° vertical field of view
  • 72�° horizontal field of view
  • Focus distance 0.3m-infinity
  • 1920 x 1080 pixels progressive @ 30fps/1280 x 720 pixels progressive @ 60fps
  • Automatic or manual focus/brightness/white balance
  • Far-end camera control
  • Upside-down mounting with manual flipping of picture
System Management
  • Support for the Cisco TelePresence Management Suite
  • Total management via embedded SNMP, Telnet, SSH, XML, SOAP
  • Remote software upload: via web server, SCP, HTTP, HTTPS
  • Remote control and on-screen menu system
Directory Services
  • Support for Local directories (My Contacts)
  • Corporate Directory
  • Unlimited entries using Server directory supporting LDAP and H.350
  • Unlimited number for Corporate directory (through Cisco TelePresence Management Suite)
  • 200 number local directory
  • Received Calls
  • Placed Calls
  • Missed Calls with Date and Time
Power
  • Auto-sensing power supply
  • 100-240 VAC, 50/60 Hz
  • 75 watts max. for codec and main camera
Operating Temperature and Humidity
  • 0�° C to 35�° C (32�° F to 95�° F) ambient temperature
  • 10% to 90% Relative Humidity (RH)
Storage and Transport Temperature
  • -20� C to 60� C (-4� F to 140� F) at RH 10-90% (non -condensing)
Dimensions Codec C20
  • Length: 13.8"/35.0 cm
  • Height: 1.2"/3.0 cm
  • Depth: 5"/12.7 cm
  • Weight: 4 lb/1.8 kg
** Requires option
