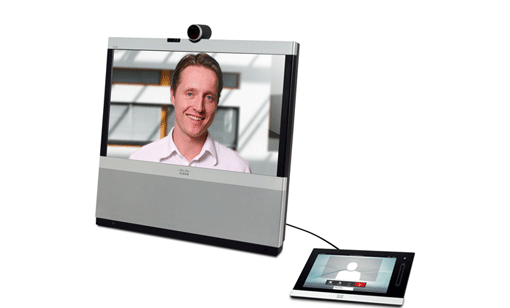

Cisco EX60

cisco ex60 thumbnail
See larger image

The EX60 is an all-in-one compact desktop video conferencing system including a 21.5" LCD screen, internal microphone, integrated PrecisionHD camera, and an integrated touch pad for control.

Compatibility - The EX60 is compatible with Cisco's entire TelePresence product line. It is "standards compliant" and connects to other manufacturer's video conference equipment too.

Ease of Use - Users can easily control communication and privacy with the sleek touch pad without the need for tech support. The system's internal address book helps uses make repeat calls easily.

Integration - Built-in dual Ethernet ports make easy connections to a users telephone, computer, and IP network. A user can display a computer screen to video callers without the need for logins or invitations.

Please contact our sales team for information on Cisco EX60 or other video conferencing products at 1.800.216.3476 or email sales@tkoworks.com

Key Differentiators of the EX60:

  • All-in-One System with 21.5" Backlit LCD Screen
  • Cisco TelePresence Touch 8 (touch screen)
  • Video resolutions of up to 720p60
  • Form factor includes speakers, camera, microphone, and monitor
  • Optional wall mount feature saves desk space
  • Integrated speakers and microphone need no cables or connectors
  • Cisco TelePresence Precision HD integrated camera
  • Tilt feature included on camera enables "document mode"
  • Supports Bluetooth module 2.1 + EDR Audio
  • Includes H.460 Firewall traversal technology
  • Up to 6Mbps Point-to-Point bandwidth capacity
  • Dual Stream video H.239 capability
  • Internal 2 port Ethernet Switch allos daisy chaining
  • Dimensions 20.0 x 20.5 x 5.4 in. (50.8 x 52 x 13.8 cm)

Features and Benefits
  • A high-quality screen with clear high-definition (HD) resolution enables a transparent, all-in-one device to work, meet, and collaborate (24�h or 21.5�h).
  • Video resolutions of 1080p30 and 720p60 bring the Cisco TelePresence experience to the desk.
  • Integration with Cisco Unified Communications Manager enables rich features including voicemail indicator, single number reach, and ad-hoc conferencing.
  • The Cisco TelePresence Touch 8 user interface allows for simple control.
  • Collaboration is natural with transparent one-touch sharing of high-definition content and a built-in document camera.
  • A Cisco TelePresence PrecisionHD camera enables video clarity and optimal F1.7, 45-65�° or 50�° field of view.
  • H.323 and Session Initiation Protocol (SIP) with bandwidth up to 6 Mbps point-to-point provide the possibility to establish calls with very high quality.
  • Dual front speakers offer superior audio, including an integrated subwoofer on the EX90.
  • A wideband handset is included; you can also add a headset input for privacy (wired or Bluetooth wireless).
  • The EX60 is wall-mountable with select VESA brackets. An external wall mount solution is also available for the EX90 through Milestone http://cdn.chiefmfg.com/Flyers-Brochures/Chief_Cisco_flyer.pdf.
  • The EX90 supports embedded MultiSite which brings together up to four locations into one call.
  • Dual display capability (HDMI out) is also available on the EX90 to enable a second display that can be dedicated to content.
  • The system is standards-based for immediate connectivity to anyone regardless of system, from a soft client to immersive telepresence system, to a meeting room around the globe.
Product Specifications
Product Compatibility
  • Fully compatible with standards-compliant telepresence and video systems
Software Compatibility
  • Cisco TelePresence Software Version TC3.1 (EX90) and TC4 .0 (EX60) or later, or TE 6.0
Components
    Fully integrated unit including:
  • Codec
  • Display
  • Camera
  • Microphone and speakers
  • Cables including: VGA-to-DVI-I cable, DVI-D cable, 3.5-mm jack audio cable, LAN cable, power adapter, and power cable
Display
  • 21.5-in. LCD monitor (with LED backlight)
  • Resolution: 1920 x 1080 (16:9)
  • Contrast ratio: 1000:1
  • Viewing angle: 170�°
  • Response time: 5 ms
  • Brightness: 225cd/m2
  • 5�°-15�° tilt
PC and secondsource video input
  • DVI-I
Supported PC input resolutions
  • SVGA (800 x 600) to 1080p (1920 x 1080)
Camera
  • Cisco TelePresence PrecisionHD design
  • Resolutions: 1080p30 and 720p60
  • Auto focus
  • Integrated privacy shutter
  • Document camera mode
  • Multicoated all-glass optics
  • 1/3-in., 2.1 megapixel CMOS sensor
  • Horizontal field of view: 50�°
  • Vertical field of view: 29�°
  • Focus distance 0.1-infinity
Audio system
  • Two stereo front speakers
  • Integrated full-range microphone
  • One 3.5-mm line-in jack for PC or other audio source
  • Two 3.5-mm jack for headset
  • Wideband handset
  • Bluetooth module 2.1 + EDR
  • Integrated subwoofer
  • Support for Cisco TelePresence Table Microphone 20
User interface
    Cisco TelePresence Touch 8
  • Eight-inch projected capacitive touch screen
  • Resolution: 800 x 480
Language support
  • English, Chinese-S, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Russian, Spanish, Swedish, Portuguese-Brazilian, Czech*, Polish*, Chinese-Traditional*, Turkish*
  • *Not supported in TE software
Physical dimensions (H x L x D)
  • Cisco TelePresence EX60 main unit: 20.0 x 20.5 x 5.4 in. (50.8 x 52 x 13.8 cm)
  • Cisco TelePresence Touch 8: 1.7 x 9.0 x 5.7 in. (4.4 x 22.8 x 14.5 cm)
  • Cisco TelePresence Touch 8 with handset: 3.0 x 11.4 x 7.4 in. (7.7 x 29.0 x 18.7 cm)
  • Cable length: 47 in. (120 cm)
Weight
  • Cisco TelePresence EX60 main unit: 12.9 lb(5.85 kg)
  • Cisco TelePresence Touch 8: 1.4 lb (0.64 kg).
  • Cisco TelePresence Touch 8 with handset: 2.1 lb (0.94 kg)
Power
    Autosensing power supply
    100-240 VAC, 50/60 Hz
    75 watts max
    Power consumption:
  • EX90 with Touch 8: In video call: 110W, In standby: 58W
  • EX60 with Touch 8: In video call: 46W, In standby: 31W
Temperature range
    Operating temperature and humidity:
  • Ambient temperature: 32 to 95�°F (0 to 35�°C)
  • Relative humidity (RH): 10 to 90%
  • Storage and transport temperature at RH 10-90% (noncondensing): -4 to 140�°F (-20 to 60�°C)
Approvals and compliance
  • Directive 2006/95/EC (Low-Voltage Directive).Standard EN 60950-1
  • Directive 2004/108/EC (EMC Directive).Standard EN 55022, Class A.Standard EN 55024.Standard EN 61000 3-2/-3-3
  • Approved according to UL 60950-1 and CSA 60950-1-07
  • Complies with FCC15B Class A
Video and Audio Specifications
Bandwidth
  • H.323/SIP up to 6 Mbps point-to-point
Video standards
  • H.261
  • H.263
  • H.263+
  • H.264
Video features
  • Widescreen: 16:9
  • Advanced screen layouts
  • Intelligent video management
  • Local auto layout
Live video resolutions (encode/decode)
  • 176 x 144@30 fps (QCIF)
  • 352 x 288@30 fps (CIF)
  • 512 x 288@30 fps (w288p)
  • 576 x 448@30 fps (448p)
  • 768 x 448@30 fps (w448p)
  • 704 x 576@30 fps (4CIF)
  • 1024 x 576@30 fps (w576p)
  • 640 x 480@30 fps (VGA)
  • 800 x 600@30 fps (SVGA)
  • 1024 x 768@30 fps (XGA)
  • 1280 x 1024@30 fps (SXGA)
  • 1280 x 720@30 fps (720p30)
  • 1280 x 768@30 fps (WXGA)
  • 1920 x 1080@30 fps (1080p30)*
  • 1440 x 900@30 fps (WXGA+)*
  • 1472 x 1080@30 fps (SXGA+)*
  • 1680 x 1050@30 fps (WSXGA+)*
  • 1600 x 1200@30 fps (UXGA)*
  • 512 x 288@60 fps (w288p60)*
  • 768 x 448@60 fps (w448p60)*
  • 1024x576@60 fps (w576p60)*
  • 1280x720@60 fps (720p60)** Requires premium resolution option
Audio standards
  • G.711
  • G.722
  • G.722.1
  • 64/128 kbps MPEG4 AAC-LD
  • AAC-LD stereo
Audio features
  • CD-quality 20-kHz stereo
  • Acoustic echo canceling
  • Automatic gain control
  • Automatic noise reduction
  • Active lip synchronization
Dual stream
  • H.239 (H.323) dual stream
  • BFCP (SIP) dual stream
  • EX60 supports resolutions up to 720p in both main stream and dual stream simultaneously
Network, Security and Management Specifications
Protocols
  • H.323
  • SIP
Network interfaces
  • Internal 2-port Ethernet switch
  • One LAN/Ethernet (RJ-45) 10/100/1000 Mbps for PC
  • One LAN/Ethernet (RJ-45) 10/100/1000 Mbps for LAN
Other interfaces
  • Bluetooth support
  • Two USB device for future applications (EX90)
  • One USB device for future applications (EX60)
IP network features
  • Domain Name System (DNS) lookup for service configuration
  • Differentiated Services (QoS)
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lip-sync buffering
  • H.245 DTMF tones in H.323
  • Date and time support with Network Time Protocol (NTP)
  • Packet loss-based down-speeding
  • DNS-based URI dialing
  • TCP/IP
  • Dynamic Host Configuration Protocol (DHCP)
  • IEEE 802.1x network authentication
  • IEEE 802.1q VLAN
  • IEEE802.1p QoS and class of service (CoS)
  • ClearPath
IPV6 Network support
  • Single call stack support for both H323 and SIP
  • Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
  • Support for both static and auto-configuration (stateless address auto-configuration)
Firewall traversal
  • Cisco TelePresence Expressway Technology
  • H.460.18 and H.460.19 Firewall Traversal
Supported Infrastructure
  • Cisco Communications Manager 5.1 and newer (8.6.2 and newer recommended)
  • Cisco TelePresence Video Communication Server (VCS)
  • Cisco WebEx TelePresence Server
Embedded encryption
  • H.323/SIP point-to-point
  • Standards-based: H.235v3 and Advanced Encryption Standard (AES)
  • Automatic key generation and exchange
  • Supported in dual stream
Security features
  • Management via Secure HTTP (HTTPS) and Secure Shell (SSH) Protocol
  • IP administration password
  • Administrator Menu password
  • Disable IP services
  • Network settings protection
Multipoint support
  • Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS] and Cisco TelePresence MCU)
  • Ability to natively join multipoint conferences hosted on Cisco TelePresence Multipoint Switch (CTMS)
System management
  • Support for the Cisco TelePresence Management Suite
  • Total management through embedded Simple Network Management Protocol (SNMP), Telnet, SSH, XML, and Simple Object Access Protocol (SOAP)
  • Remote software upload: Through web server, Secure Copy Protocol, HTTP, and HTTPS
Directory services
  • Support for local directories (My Contacts)
  • Corporate directory
  • Unlimited entries using server directory supporting
  • Lightweight Directory Access Protocol (LDAP) and H.350
  • Unlimited number for corporate directory (available with Cisco TelePresence Management Suite
  • Local directory: 200 numbers
  • Received calls with date and time
  • Placed calls with date and time
  • Missed calls with date and time
How do I connect my legacy equipment to my network for secure video teleconferencing?
a. Update current firmware.
b. Connect comm line to firewall LAN.
c. Make sure data is going through secure port.

Is security a concern for video teleconferencing?
a. System must be correctly connected to your enterprise network.
b. Outside of your company participants ,must be funneled through security for content sharing.

How do I host a special event and reach all members to get and save collaboration results?
a. Secure and reliable video streaming network with Collaboration services.
b. A vendor with a reliable and secure video service with feedback support.
