Tandberg 1000 - Specifications

The Tandberg 1000 equipment includes wireless remote control, built-in camera, microphone, speakers, cables, 12.1" LCD screen, table-top stand and optional wall mount bracket. The 1000 is perfect for executive offices and small meeting rooms.

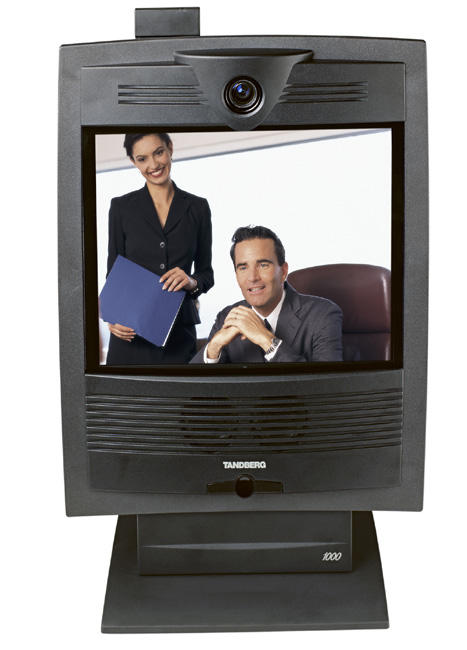

tandberg 1000 front thumbnail
See larger image

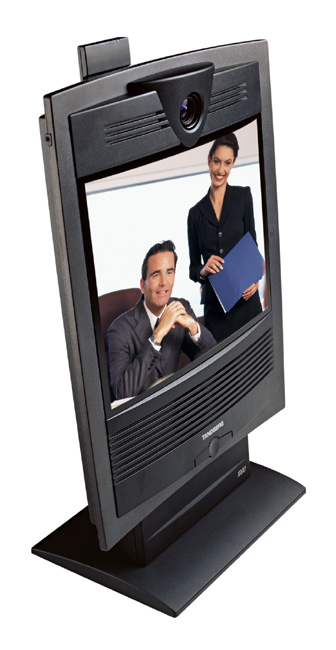

tandberg 1000 left thumbnail
See larger image

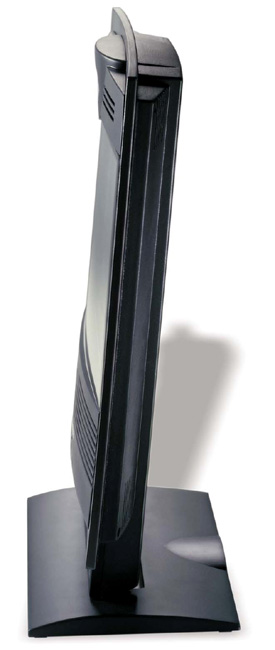

tandberg 1000 side thumbnail
See larger image

Bandwidth

  • H.320 up to 384 kbps
  • H.323 up to 768 kbps

LCD Screen

  • Wide view angle screen
  • SVGA resolution
  • Auto or manual brightness

Video Standards

  • H.261, H.263, H.263+, H.263++, H.264 (Natural VideoTF*)

Video Features of the Tandberg 1000

  • Picture in Picture (PIP)
  • Intelligent Video ManagementTF*

Video Inputs (1 input)

  • Built-in main camera
  • 1 x RCA/Phono, composite: document camera/auxiliary
  • 1 x XGA: PC using VNC (PC SoftPresenterTF)

Video Format

  • NTSC, PAL, VGA, SVGA or XGA

Tandberg 880 Live Video Resolution

Native NTSC

  • 4SIF (704 x 480 pixels), Digital ClarityTF
  • SIF (352 x 240 pixels)

Native PAL:

  • 4CIF (704 x 576 pixels), Digital ClarityTF
  • CIF (352 x 288 pixels)
  • QCIF (176 x 144 pixels)
  • SQCIF (128 x 96 pixels) decode only

Native PC Resolutions:

  • XGA (1024 x 768 pixels)
  • SVGA (800 x 600 pixels)
  • VGA (640 x 480 pixels)

Still Image Transfer

  • CIF, SIF, 4CIF (H.261 Annex D), 4 SIF, VGA, SVGA, XGA
tandberg 1000

Audio Features

  • Automatic noise reduction
  • Acoustic echo cancellers
  • Audio mixer
  • Automatic gain control

Audio Standards

  • G.711, G.722, G.722.1, G.728

Privacy Feature

  • Headset, 2.5 mm mini jack

Tandberg 1000 Video Conferencing Frame Rates

  • 15 frames per second @ 56 - 128 kbps
  • 30 frames per second @ 168 - 768 kbps

Network Features

  • Auto H.320/H.323 dialing
  • DownspeedingTF
  • Programmable network profiles
  • Intelligent Call ManagementTF
  • Maximum call length timer
  • Automatic SPID and line number configuration (National ISDN, GR-2941-CORE)
  • SoftMuxTF

H.323 Video Conferencing Network Features

  • Differentiated Services (DiffServ)
  • Resource Reservation Protocol (RSVP)
  • IP precedence
  • IP type of service (ToS)
  • Network Address Translation (NAT) Support
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lipsync buffering
  • Intelligent Packet Loss RecoveryTF (IPLRTF)

Embedded Encryption

  • H.320 and H.323 point-to-point video conferencing calls
  • Standards-based: H.233, H.234, H.235, DES and AES
  • Automatic key generation and exchange

Security Features for the Tandberg 1000

  • IP Password
  • Menu Password
  • Access code
  • Streaming password
  • H.243 MCU password
  • VNC password
  • SNMP security alert
  • Encrypted HTTP password
  • Possibility to disable IP services

Network Interfaces

  • 3 x ISDN BRI (RJ-45), S-interface
  • 1 x LAN/Ethernet (RJ-45) 10/100 Mbit (LAN/DSL/cable modem)
  • 1 x PC card slot (PCMCIA) for wireless LAN

Wireless LAN Support

  • Compliant with IEEE 802.11b, up to 11 Mbit
  • Support for 64/128 bit encryption (WEP)
  • Infrastructure or ad-hoc mode

Ethernet/Internet/Intranet/Connectivity

  • TCP/IP, DHCP, ARP, FTP, Telnet, HTTP
  • SNMP Enterprise Management
  • Internal web server
  • Internal streaming server (streams local and far-end site)
  • Wired 10/100 Mbit full/half duplex (manual or auto detect selection)
  • Wireless up to 11 Mbit (auto detect selection)

Other Major ITU Standards Supported

  • H.320, H.323, H.281, BONDING (ISO 13871), H.231, H.243, H.235, H.233, H234

You may also be interested in learning more about:

Tandberg 1000 Camera

  • 1.7 x zoom
  • 1/3" CCD
  • +5�/-20� tilt (mechanical)
  • 47� vertical field of view
  • 65� horizontal field of view
  • 450 (PAL)/460 (NTSC) horizontal TV lines
  • Min. illumination 0.5 Lux (F1.4)
  • Manual focus
  • Auto or manual brightness and white balance
  • Far end camera control
  • 15 near and far-end camera pre-sets

Closed Captioning/Text Chat

  • T.140 standards-based

Video Conferencing Presentations and Collaboration

  • Tandberg 1000 presenter package including:
  • PC SoftPresenterTF
  • Digital ClarityTF
  • T. 120 Microsoft NetMeeting support via RS-232 (9-pin D-sub)
  • Streaming (compatible with Cisco IP/TV, Apple QuickTime, RealPlayer v8 etc.)

System Management

  • Support for the Tandberg Management Suite Software
  • Total management via embedded web server, SNMP, Telnet and FTP
  • Remote software upload: during a call over all networks, via webserver or via FTP server
  • 1 x RS-232 for local software upgrades, local control and diagnostics
  • Remote control and menu system

Directory Services

  • 400 number global directory
  • 100 number local directory

Customized Boot Up Logo (JPEG)

Power

  • Auto-sensing power supply
  • 100 - 250V AC, 50 - 60 Hz
  • 40 watts max.

10 Languages (selectable menu)

  • Chinese, English, French, German, Italian, Japanese, Norwegian, Portuguese, Spanish and Swedish

Tandberg 1000 Physical Dimensions

  • Width: 11.8"/30.0cm
  • Height: 17.7"/45.0cm
  • Depth: 2.6"/6.6cm
  • Weight: 9.0lbs/4.1kg

*TF indicates Tandberg First
