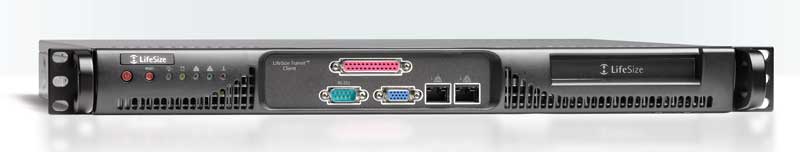

LifeSize Transit™

LifeSize Transit™ is a secure firewall and NAT traversal tool that enables video calls between internal and external network devices by traversing firewalls. The effect: simple video communications. The growth of IP communications for connecting people has introduced the challenge of security as well as interoperability among all devices connected to your network. Using LifeSize Transit� your organization will be able to converse effectively without compromising security and quality.

Features and Benefits:

• up to 20 simultaneous 1Mbps calls for LifeSize systems
• up to 10 simultaneolus 1Mbsp calls for non LifeSize endpoints
• Easy installation, management, and integration
• LifeSize Transit client available for non LifeSize endpoints
• Support for TCP, HTTPs and SIP protocols
• Easily upgrade versions via software image loaded on flash memory

Product Specifications:

System Components

• LifeSize Transit Server
• Simple SIP-based appliance server
• Signaling, media and registrar services
• 500 device registrations
• Up to 20 simultaneous 1 Mbps calls

LifeSize Transit Connector

• Free software included on all LifeSize Room and LifeSize Team systems*
• No additional licensing fee
• LifeSize Transit-ready
• * LifeSize video systems need to be on version 2 or higher for LifeSize Transit Connector software

LifeSize Transit Client

• Enables non-LifeSize video systems to securely traverse firewalls
• Support up to 20 non-LifeSize systems in its base configuration, with up to 10 simultaneous 1 Mbps Calls

Scalable

• Cluster support for greater capacities

Architecture

• Secure
• Flash Memory
• Appliance-based architecture

Protocols

• SIP, UDP, TCP, HTTPS, STUN, TURN, ICE

Security

• HTTPS Secure configuration

Management

• Support access to via HTTPS
• Serial console
• SNMP traps
• Event and call logging

System Controls

• Power On/Off button
• System Reset button
• Power LED
• 2 x Network Activity LED
• Flash Disk Access LED
• System Overheat LED
• Fan Failure LED

Embedded Registrar

• Support for 500 registered endpoints
• URL addressing with DNS resolution
• Supports private IP addresses within a company domain
• Administrator designated public IP addressable
• Expandable to include more entries

Network Interfaces

• 10/100/1000 Ethernet Adaptor
• Serial Console Interface

Physical Dimensions

• Height: 43 mm/1.7 in
• Width: 426 mm/16.75 in
• Depth: 355.6 mm/14 in
• Weight: 7.5 Kg/16.5 lbs
