Tandberg 880 - Specifications

The Tandberg 880 video conferencing system is a set top codec. The standard system is delivered complete with wireless remote control, integrated W.A.V.E. II camera, high quality wired microphone and cables for connection to video displays and IP network. This system is ideal for small to medium size meeting rooms; the 880 can transform any standard television set into a global meeting and communications tool.

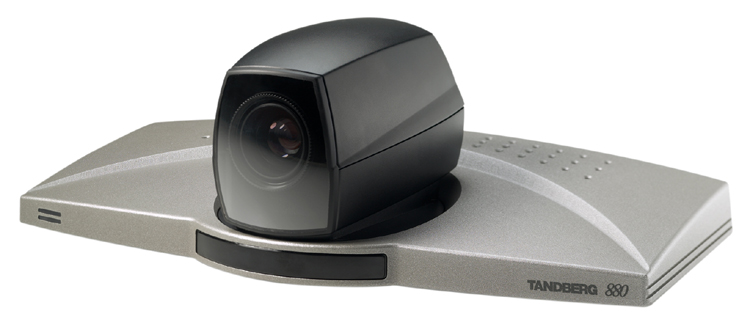

tandberg 880 front thumbnail
See larger image

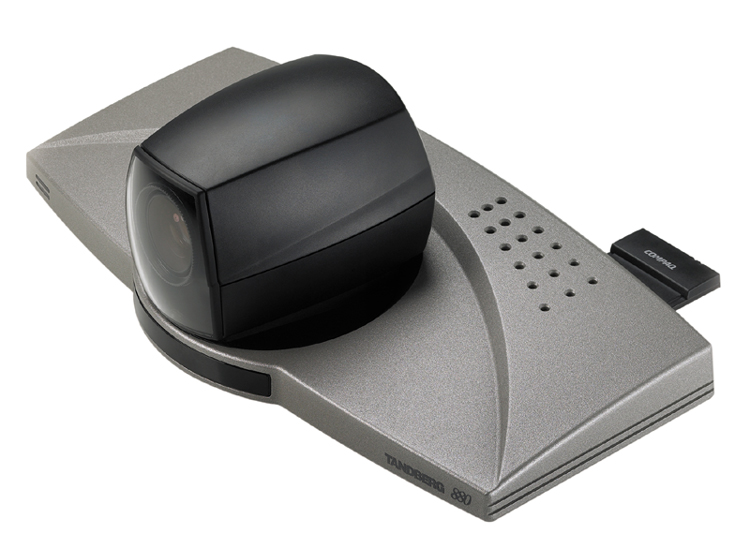

tandberg 880 side thumbnail
See larger image

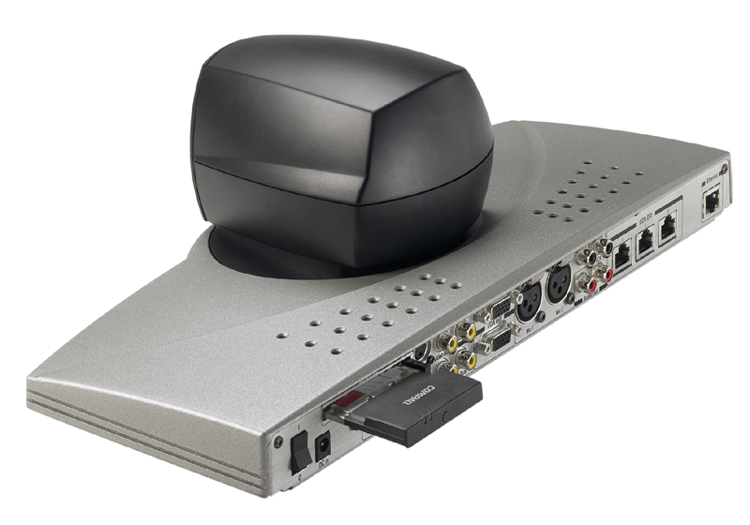

tandberg 880 back thumbnail
See larger image

Tandbrg 880 Video Standards

  • H.261, H.263, H.263+, H.263++, H.264 (Natural VideoTF*)

Bandwidth

  • H.320 up to 384 kbps
  • H.323 up to 768 kbps

Video Features of the Tandberg 880

  • Picture in Picture (PIP)
  • Intelligent Video ManagementTF*

Video Outputs (4 outputs)

  • 1 x MiniDin, S-video: main monitor
  • 1 x RCA/Phono, composite: main monitor or VCR
  • 1 x RCA/Phono, composite: dual monitor or VCR
  • 1 x XGA: main monitor or dual monitor

Video Inputs (4 inputs)

tandberg 880
  • Built-in main camera
  • 1 x MiniDin, S-video: auxiliary/document camera
  • 1 x RCA/Phono, composite: document camera/aux
  • 1 x RCA/Phono, composite: VCR
  • 1 x XGA: PC

XGA Input/XGA Output

  • Input: 640 x 480 - 1024 x 768, 56 - 85 Hz. auto-detection
  • Output: 640 x 480 - 1024 x 768, 60 Hz

Video Format

  • NTSC, PAL, VGA, SVGA or XGA

Tandberg 880 Live Video Resolution

Native NTSC

  • 4SIF (704 x 480 pixels), Digital ClarityTF
  • Interlaced SIFTF (352 x 480 pixels), Natural VideoTF
  • SIF (352 x 240 pixels)

Native PAL

  • 4CIF (704 x 576 pixels), Digital ClarityTF
  • Interlaced CIFTF (352 x 576 pixels), Natural VideoTF
  • CIF (352 x 288 pixels)
  • QCIF (176 x 144 pixels)
  • SQCIF (128 x 96 pixels) decode only

Native PC Resolutions

  • XGA (1024 x 768 pixels)
  • SVGA (800 x 600 pixels)
  • VGA (640 x 480 pixels)

Still Image Transfer

  • CIF, SIF, 4CIF (H.261 Annex D) 4 SIF, VGA, SVGA, XGA

You may also be interested in learning more about:

Audio Standards

  • G.711, G.722, G.722.1, G.728

Audio Features

  • Telephone add-on via MultiSiteTF
  • Audio level meters
  • Automatic noise reduction
  • Two separate acoustic echo cancellers
  • Audio mixer
  • Automatic gain control
  • VCR ducking

Audio Output (2 output)

  • 1 x RCA/Phono, Line Level: main audio
  • 1 x RCA/Phono, Line Level: VCR

Frame Rates - Point-to-Point and MultisiteTF Video Conferencing

  • 15 frames per second @ 56 - 128 kbps
  • 30 frames per second @ 168 - 768 kbps
  • Point-to-point only: 60 fields per second @ 336 kbps - 768 kbps (Natural VideoTF)

Audio Inputs (4 inputs)

  • 2 x microphone, 11V phantom powered, XLR connector
  • 1 x RCA/Phono, Line Level: Auxiliary/VCR
  • 1 x RCA/Phono, Line Level: VCR

Tandberg 880 Multisite Video Conferencing Features

  • Support for ISDN or IP telephones
  • ISDN & IP DownspeedingTF at call set-up
  • Dial in/Dial out capabilities
  • Continuous Presence or Voice Switched
  • Chair control for host system
  • 5 sites including min. 1 telephone call
  • Built-in MultiSiteTF audio bridge for up to 5 sites
  • Built-in MultiSiteTF IP audio bridge for up to 4 sites
  • DuoVideoTF, Digital ClarityTF

MultiSiteTF and (H.243) Cascading over ISDN and IP

  • Up to 10 video and 4 audio sites
  • Any combination of IP & ISDN connections (transcoding)

MultiSiteTF over IP

  • 4 sites @ 64-256 kbps + 1 telephone call via ISDN
  • 3 sites @ 64-384 kbps + 2 telephone calls via ISDN
  • Point-to-point @ 768 kbps + 3 telephone calls via ISDN

MultiSiteTF over ISDN/3BRI

  • 4 sites @ 128 kbps or 3 sites @ 192kbps
  • 3 sites @ 128 kbps + 2 telephone calls via ISDN
  • Point-to-point @ 192 kbps + 3 telephone calls via ISDN

Network Features

  • Auto H.320/H.323 dialing
  • DownspeedingTF
  • Programmable network profiles
  • Intelligent Call ManagementTF
  • Maximum call length timer
  • Automatic SPID and line number configuration (National ISDN, GR-2941-CORE)
  • SoftMuxTF

DuoVideoTF

  • Available on all networks
  • Available from host system in MultiSiteTF (over IP & ISDN)

Embedded Encryption

  • H.320 and H.323 point-to-point and multipoint video conferencing calls
  • Standards-based: H.233, H.234, H.235, DES and AES
  • Automatic key generation and exchange
  • Supported in DuoVideoTF

Tandberg 880 Security Features

  • IP Password
  • Menu Password
  • Access code
  • Streaming password
  • H.243 MCU password
  • VNC password
  • SNMP security alert
  • Encrypted HTTP password
  • Possibility to disable IP services

H.323 Video Conferencing Network Features

  • Differentiated Services (DiffServ)
  • Resource Reservation Protocol (RSVP)
  • IP precedence
  • IP type of service (ToS)
  • Network Address Translation (NAT) Support
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lipsync buffering
  • Intelligent Packet Loss RecoveryTF (IPLRTF)

Network Interfaces

  • 3 x ISDN BRI (RJ-45), S-interface
  • 1 x LAN/Ethernet (RJ-45) 10/100 Mbit (LAN/DSL/cable modem)
  • 1 x PC card slot (PCMCIA) for wireless LAN

Wireless LAN Support

  • Compliant with IEEE 802.11b, up to 11 Mbit
  • Support for 64/128 bit encryption (WEP)
  • Infrastructure or ad-hoc mode

Ethernet/Internet/Intranet/Connectivity

  • TCP/IP, DHCP, ARP, FTP, Telnet, HTTP
  • SNMP Enterprise Management
  • Internal web server
  • Internal streaming server (streams local and far-end site)
  • 10/100 Mbit full/half duplex (manual or auto detect selection)

Other Major ITU Standards Supported

  • H.320, H.323, H.281, BONDING (ISO 13871), H.231, H.243, H.235, H.233, H.234

Intgrated W.A.V.E. (wide angle view) II Camera

  • 10 x zoom
  • 1/4" CCD
  • +15/-20 tilt
  • +/-95 pan
  • 61 vertical field of view
  • 96 total vertical field of view
  • 77 horizontal field of view
  • 267 total horizontal field of view
  • 460 (PAL)/470 (NTSC) TV lines
  • Min. illumination 2 Lux (F1.8)
  • Auto or manual focus/brightness/white balance
  • Far end camera control
  • 15 near and far-end camera pre-sets
  • Voice-activated camera positioning
  • Daisy chain support for up to 4 cameras
  • VISCA camera support

Video Conferencing Presentations and Collaboration

  • Natural Presenter Package including:
  • PC PresenterTF
  • PC SoftPresenterTF
  • Digital ClarityTF
  • T.120 Microsoft NetMeeting support via RS-232 (9-pin D-sub)
  • Streaming (compatible with Cisco IP/TV, Apple QuickTime, RealPlayer v8 etc.)

Closed Captioning/Text Chat

  • T.140 standards-based

System Management

  • Support for the Tandberg Management Suite Software
  • Total management via embedded web server, SNMP, Telnet and FTP
  • Remote software upload: during a call over all networks, via webserver or via FTP server
  • 1 x RS-232 for local software upgrades, local control and diagnostics
  • Remote control and on-screen menu system

Directory Services

  • 100 number local directory
  • 400 number global directory
  • 16 dedicated MultiSiteTF video conferencing entries

Customized Boot Up Logo (JPEG)

Power

  • Auto-sensing power supply
  • 100 - 250V AC, 50 - 60 Hz
  • 40 watts max.

10 Languages (selectable menu)

  • Chinese, English, French, German, Italian, Japanese, Norwegian, Portuguese, Spanish and Swedish

Tandberg 880 Physical Dimensions

  • Width: 14.9"/38.0 cm
  • Height: 5.1"/13.0 cm
  • Depth: 7.9" /20.0 cm
  • Weight: 5.0 lbs./2.3 kg

*TF indicates Tandberg First
