Cisco C60

The Cisco C60 is a professional grade integrator codec that provides excellent function for boardrooms and large conference rooms.

The C60 is suitable for use in equipment racks that require significant audiovisual integration. With 7 audio inputs and 3 audio outputs, this system can accommodate multiple microphones and other audio input (such as from a PC or telephone hybrid). In addition to its many audio inputs and outputs, the C60 also includes 5 distinct video inputs and 3 outputs [Inputs include a mix of HDMI, DVI-I, Composite / Outputs include a mix of HDMI, DVI-I and Composite]. This codec is made for significant integration applications.

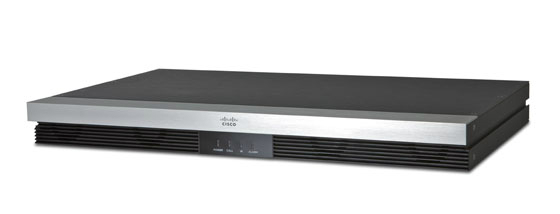

cisco c60 thumbnail
See larger image

Key Differentiators of the C60:

  • Designed for integration into conference rooms and boardrooms
  • 1080p30 video provides HD interactive video conferencing
  • Form factor is a 1RU design for compact rack mounting
  • Includes 7 Audio Inputs and 3 Audio Outputs
  • Includes 5 Video Inputs and 3 Video Outputs
  • Includes H.460 Firewall traversal technology
  • Optional 4 way 720p30 Multisite capability
  • Up to 10Mbps Multisite bandwidth capacity
  • Dual Stream video H.239 capability

Please contact our sales team for information on Cisco C60 or other video conferencing products at 1.800.216.3476 or email sales@tkoworks.com


Design features
  • The next generation HD video collaboration codec
  • 1 rack unit (1RU) high, rack-mountable, with rack-mounting solution included
  • Professional-grade connectors
  • Unmatched quality and flexibility
  • Standards-compliant 1080p solution - compatible with standards-based video without losing features
Application features
  • 720p30 HD embedded Cisco TelePresence MultiSite (MultiSite) with individual transcoding
  • Collaborate with three simultaneous video inputs
  • HD Collaboration with 1080p30 and WUXGA*
  • One button to push (OBTP) to start a meeting
  • Limitless integration possibilities
  • Ideal for team-based collaboration, boardrooms, meeting rooms, and industry applications
  • Seven video compositors (embedded)
Performance features
  • Optimal definition up to 1080p
  • H.323/SIP up to 6 Mbps point-to-point
  • Up to 10 Mbps total MultiSite bandwidth
  • Ability to connect up to five HD sources and four microphones directly into the interface
  • Full duplex audio with high-quality stereo sound
  • Full application programming interface (APIs)
  • Ability to takes advantage of Cisco® TelePresence Total Solution Management, transcoded HD
  • MultiSite, recording and streaming, Multiway, and firewall traversal
  • Cisco TelePresence ClearPath packet loss protection technology for optimal experience
  • Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager version 8.6 or higher)
Unit delivered complete with:
  • Videoconferencing codec, wireless remote control, rack-mounting rails, LAN cable, and power cable
Bandwidth
  • H.323/SIP up to 6 Mbps point-to-point
  • Up to 10 Mbps total MultiSite bandwidth
Firewall traversal
  • Cisco TelePresence Expressway technology
  • H.460.18 and H.460.19 Firewall Traversal
Video standards
  • H.261, H.263, H.263+, and H.264
Video features
  • Native 16:9 widescreen
  • Advanced screen layouts
  • Intelligent video management
  • Local auto layout
  • Seven embedded individual video compositors - one for every output and one for every encoder**
Video inputs (five inputs)
    Two HDMI Inputs, Supported Formats:
  • 1920 x 1080@60 and 59.94 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1920 x 1080@30 and 29.97 Hz (1080p30)
  • 1920 x 1080@25 Hz (1080p25)
  • 1920 x 1080@24, and 23.97 Hz (1080p24)
  • 1280 x 720@60, and 59.94 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 720 x 480@60, and 59.94 Hz (480p60)
  • 640 x 480@60 Hz (480p60)
  • 1600 x 1200@50, and 60 Hz (UXGA)
  • 1280 x 1024@60, and 75 Hz (SXGA)
  • 1024 x 768@60, 70, 75, and 85 Hz (XGA)
  • 800 x 600@56, 60, 72, 75, and 85 Hz (SVGA)
  • 1920 x 1200@50 and 60 Hz (WUXGA)
  • 1680 x 1050@60 Hz (WSXGA+)
  • 1440 X 900@60 Hz (WXGA+)
  • 1280 x 768@60 Hz (WXGA)
  • Two DVI-I Inputs: Supported Formats:
    Analog (VGA):
  • 1920 x 1080@60 Hz (1080p)
  • 1280 x 720@60 Hz (720p)
  • 1600 x 1200@60 Hz (UXGA)
  • 1280 x 1024@60 and 75 Hz (SXGA)
  • 1280 x 960@60 Hz
  • 1024 x 768@60, 70, 75, and 85 Hz (XGA)
  • 1920 x 1200@50 Hz (WUXGA)
  • 1680 x 1050@60 Hz (WSXGA+)
  • 1440 x 900@60 Hz (WXGA+)
  • 1280 x 800@60 Hz (WXGA)
  • 1280 x 768@60 Hz (WXGA)
  • Analog (YPbPr):
  • 1920 x 1080@60 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1920 x 1080@30 Hz (1080p30)
  • 1920 x 1080@25 Hz (1080p25)
  • 1280 x 720@60 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 1280 x 720@30 Hz (720p30)
  • 720 x 576@50 Hz (576p50)
  • 720 x 480@60 Hz (w480p60)
  • Digital (DVI-D):
  • 1920 x 1080@60, 59.94 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1920 x 1080@30, 29.97 Hz (1080p30)
  • 1920 x 1080@25 Hz (1080p25)
  • 1920 x 1080@24, 23.97 Hz (1080p24)
  • 1280 x 720@60, 59.94 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 720 x 480@60, 59.94 Hz (480p60)
  • 640 x 480@60 Hz (480p60)
  • 1600 x 1200@50, 60 Hz (UXGA)
  • 1280 x 1024@60, 75 Hz (SXGA)
  • 1024 x 768@60, 70, 75, 85 Hz (XGA)
  • 800 x 600@56, 60, 72, 75, 85 Hz (SVGA)
  • 1920 x 1200@50, 60 Hz (WUXGA)
  • 1680 x 1050@60 Hz (WSXGA+)
  • 1440 X 900@60 Hz (WXGA+)
  • 1280 x 768@60 Hz (WXGA)
  • OneComposite Input (BNC Connectors)
  • PAL/NTSC
  • Extended Display Identification Data (EDID)
Video outputs (three outputs)
    One HDMI Output and One DVI-I Output; Supported Formats:
  • 1920 x 1080@60 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1280 x 720@60 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 1600 x 1200@60 Hz (UXGA)
  • 1280 x 1024@60 Hz (SXGA)
  • 1024 x 768@60 Hz (XGA)
  • 800 x 600@60 Hz (SVGA)
  • 640 x 480@60 Hz (VGA)
  • 1920 x 1200@60Hz (WUXGA)
  • 1360 x 768@60 Hz
  • 1366 x 768@60 Hz
  • 1280 x 768@60 Hz (WXGA)
  • OneComposite Output (BNC Connector):
    Supported Formats:
  • PAL/NTSC
  • VESA Monitor Power Management Extended Display Identification Data (EDID)
Live video resolutions (encode anddecode)
  • 176 x 144@30 frames per second (fps) (QCIF)
  • 352 x 288@30 fps (CIF)
  • 512 x 288@30 fps (w288p)
  • 576 x 448@30 fps (448p)
  • 768 x 448@30 fps (w448p)
  • 704 x 576@30 fps (4CIF)
  • 1024 x 576@30 fps (w576p)
  • 1280 x 720@30 fps (720p30)
  • 1920 x 1080@30 fps (1080p30)*
  • 640 x 480@30 fps (VGA)
  • 800 x 600@30 fps (SVGA)
  • 1024 x 768@30 fps (XGA)
  • 1280 x 1024@30 fps (SXGA)
  • 1280 x 768@30 fps (WXGA)
  • 1440 x 900@30 fps (WXGA+)
  • 1680 x 1050@30 fps (WSXGA+)
  • 1600 x 1200@30 fps (UXGA)*
  • 1920 x 1200@25 fps (WUXGA)*
  • 512 x 288@60 fps (w288p60)
  • 768 x 448@60 fps (w448p60)
  • 1024 x 576@60 fps (w576p60)
  • 1280 x 720@60 fps (720p60)*
  • 720p30 from 768 kbps
  • 720p60 from 1152 kbps
  • 1080p30 from 1472 kpbs
Audio standards
  • G.711, G.722, G.722.1,64 kbps & 128 kbps MPEG4 AAC-LD, and AAC-LD Stereo
Audio features
  • CD-quality 20 kHz mono and stereo
  • Four separate acoustic echo cancellers
  • Four-port audio mixer
  • Automatic Gain Control (AGC)
  • Automatic noise reduction
  • Active lip synchronization
Audio inputs (seven inputs)
  • Four microphones, 48V phantom powered, XLR connector each with separate echo cancellers and noise reduction, all microphones can be set for balanced line level
  • Two RCA/Phono, Line Level: Stereo PC input, configurable to 2 x RCA/Phono, Line Level: Mono auxiliary/DVD input
  • One HDMI, digital: Stereo PC/DVD inputs
Audio outputs (three outputs)
  • Two RCA/Phono, line level, stereo main audio, configurable to S/PDIF or 2 x RCA/Phono, line level, and mono to recording device
  • One HDMI, digital, and stereo main audio
Dual stream
  • H.239 (H.323) dual stream
  • BFCP (SIP) dual stream
  • Support for resolutions up to 1080p30/WUXGA, and independent of main stream resolution
MultiPoint support
  • Four-way embedded SIP/H.323 MultiPoint, reference. Reference MultiSite
  • Cisco TelePresence Multiway support)(requires Cisco TelePresence Video Communications Server
  • [Cisco VCS] and Cisco TelePresence MCU)
  • Ability to natively join multipoint conferences hosted on Cisco TelePresence Multipoint Switch(CTMS)
MultiSite features (embedded MultiPoint)
  • Four way 720p30 High Definition SIP/H.323 MultiSite
  • Full individual audio and video transcoding
  • Individual layouts in MultiSite CP (takes out self view)
  • H.323/SIP/VoIP in the same conference
  • Support for Presentation (H.239/BFCP) from any participant at resolutions up to WXGAp30
  • Best Impression (Automatic CP Layouts)
  • H.264, Encryption, Dual Stream from any site
  • IP Downspeeding
  • Dial in and dial out
  • Additional telephone call (no license required)
  • Conference rates up to 10 Mbps
Protocols
  • H.323
  • SIP
Embedded encryption
  • H.323/SIP point-to-point
  • Standards-based: H.235-v3 and Advanced Encryption Standard (AES)
  • Automatic key generation and exchange
  • Supported in dual stream
IP network features
  • DNS lookup for service configuration
  • Differentiated Services (QoS)
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lip-sync buffering
  • H.245 DTMF tones in H.323
  • Date and Time support via NTP
  • Packet Loss based Downspeeding
  • URI Dialing
  • TCP/IP
  • DHCP
  • 802.1x Network authentication
  • 802.1Q Virtual LAN
  • 802.1p (QoS and class of service [CoS])
  • ClearPath
Cisco Unified Communications Manager (requires Cisco Unified Communications Manager Version 8.6 or later)
  • Native registration with Cisco Unified Communications Manager
  • Basic Cisco Unified Communication Manager Provisioning
  • Firmware upgrade from Cisco Unified Communications Manager
  • Cisco Discovery Protocol and DHCP option 150 support
  • Basic telephony features such as hold, resume, transfer, and Corporate Directory lookup
IPv6 network support
  • Single call stack support for both H323 and SIP
  • Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ)
  • Support for both static and autoconfiguration (stateless address auto configuration)
Security features
  • Management through HTTPS and SSH
  • IP administration password
  • Menu administration password
  • Disable IP services
  • Network settings protection
Network interfaces
  • One LAN/Ethernet (RJ-45) 10/100/1000 Mbit
Other interfaces
  • USB host for future usage
  • USB device for future usage
  • GPIO
Cisco TelePresence PrecisionHD Camera (1080p)
  • 1/3"inch CMOS
  • 12x zoom
  • +15�°/-25�° tilt and +/-90�° pan
  • 43.5�° vertical field of view
  • 72�° horizontal field of view
  • Focus distance 0.3m-infinity
  • 1920 x 1080 pixels progressive @ 60fps
  • Other formats supported (configurable through Dip-switch):
    • 1920x1080@60fps (HDMI only)
    • 1920x1080@50fps (HDMI only)
    • 1920x1080@30fps
    • 1920x1080@25fps
    • 1280x720@60fps
    • 1280x720@50fps
    • 1280x720@30fps
    • 1280x720@25fps
  • Automatic or manual focus, brightness, and white balance
  • Far-end camera control
  • Daisy-chain support (Visca protocol camera)
  • Dual HDMI and HD-SDI output
  • Upside-down mounting with automatic flipping of picture
System management
  • Support for the Cisco TelePresence Management Suite
  • Total management via embedded SNMP, Telnet, SSH, XML, and SOAP
  • Remote software upload: via web server, SCP, HTTP, and HTTPS
  • One RS-232 for local control and diagnostics
  • Remote control and on-screen menu system
Directory services
  • Support for local directories (My Contacts)
  • Corporate Directory
  • Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
  • Unlimited number for Corporate Directory (through Cisco TelePresence Management Suite)
  • 200 number local directory
  • Received calls
  • Placed calls
  • Missed calls with date and time
Power
  • Auto-sensing power supply
  • 100-240 VAC, 50/60 Hz
  • 175 watts maximum for codec and main camera
Operating temperature and umidity
  • 0 to 35�° (32 to 95�° F) ambient temperature
  • 10 to 90% relative humidity (RH)
Storage and transport temperature
  • -20� C to 60� C at RH 10-90% (non-condensing)
Dimensions
  • Length: 17.4" in. (44.2 cm)
  • Height: 1.7" in (4.4 cm)
  • Depth: 10.9" in. (27.8 cm)
  • Weight: 8.8 lbs (4 kg)
*Requires option
**Multiwindow compositing not supported on the dual stream
How do I integrate my C60 with the new technology for video teleconferencing?
a. The C60 can be connected directly to Zoom, WebEx and MS Teams meetings. In each case configuration of the Cloud Application (Zoom, WebEx and MS Teams) is required to allow a “room system” codec such as the Cisco C60 to connect natively to the Cloud.
b. Alternatively, a gateway service such as TKO Video Communications can provide will enable connection from a C60 to a Zoom, WebEx or MS Teams meeting.
c. Most Cloud video conferencing services afford some method for traditional video conferencing systems to connect both video and audio to their service. For assistance with connections or meetings, contact us.

How do I host a special event and reach all members to get and save collaboration results?
a. Secure and reliable video streaming network with feedback support.
b. A vendor with a reliable and secure video service with feedback support

Is security a concern for video teleconferencing? (Yes)
a. System must be correctly connected to your enterprise network.
b. Outside of your company participants, must be funneled through security for content sharing.

More About TKO Products

Connect with TKO

background
