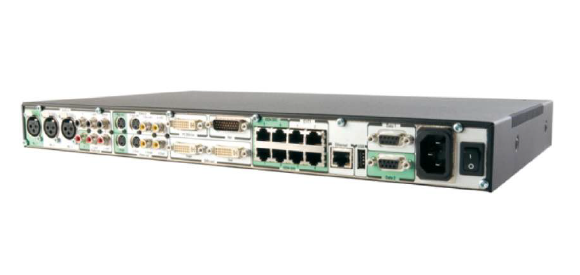

Cisco 6000 MXP

cisco 6000 mxp thumbnail
See larger image

The Cisco 6000 MXP TelePresence codec is a robust integrator codec that provides excellent capabilities to connect to A/V systems in boardrooms and large conference rooms.

The 6000 MXP is designed for integration into equipment racks that require significant audiovisual engineering. With 4 audio inputs and 3 audio outputs, this system can accommodate multiple microphones and other audio input (such as from a PC, media player, or telephone hybrid). In addition to its audio inputs and outputs, the 6000 MXP also includes 6 distinct video inputs and 6 outputs [Inputs include a mix of S-Video, DVI-I, Composite / Outputs include a mix of S-Video, XGA and Composite]. This codec is made for traditional integration applications that often include external sound systems, audio mixers and a variety of video feeds and destinations.

A special capability of the 6000 MXP is its multiple network capacity. With this TelePresence codec, video calls on IP networks can be "bridged" with video calls on ISDN networks. In this single system, connections can be made that otherwise would require an entire network architecture of bridges, gateways and gatekeepers. The Cisco TelePresence 6000MXP is a jewel among technology products providing an ideal mix of video clarity, integration options and network capacity.

Key Differentiators of the Cisco MXP TelePresence Series:

  • Designed for integration into conference rooms and equipment racks
  • W720p video provides near HD interactive video conferencing
  • Form factor is a 1RU design for compact rack mounting
  • Includes 4 Audio Inputs and 3 Audio Outputs
  • Standard XLR, RCA audio connectors
  • Includes 6 Video Inputs and 6 Video Outputs
  • Standard DVI, S-Video, XGA and composite video connectors
  • Includes H.460 Firewall traversal technology
  • Optional 6 way 768Kbps Multisite capability
  • Up to 6Mbps Multisite IP bandwidth capacity
  • Up to 2Mbps Multisite ISDN capacity
  • Dual Stream video H.239 capability
  • Designed for a wide array of integration scenarios
  • Multiple network interfaces including LAN/IP, BRI, T-1 and PRI
