Tandberg 8000 - Specifications

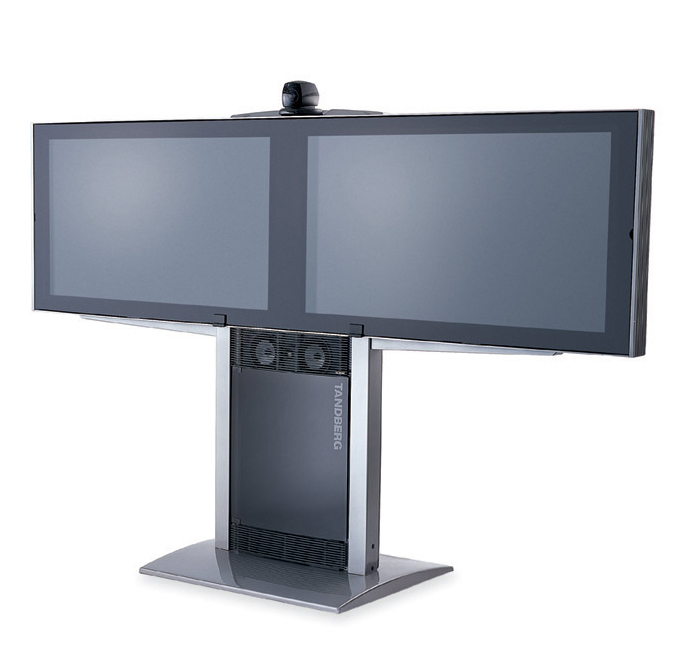

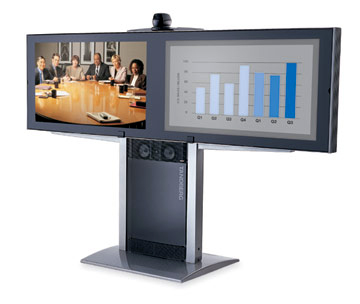

The Tandberg 8000 equipment includes two 50" wide-screen plasma monitors (NTSC or PAL), Tracker, W.A.V.E. II camera, microphone, wireless remote control Natural Audio Module� II, stand and integrated cabling. The 8000 is ideal for boardrooms and large meeting rooms.

Bandwidth

• H.320 up to 2 Mbps
• H.323 up to 3 Mbps

Tandberg 8000 Monitors

• Dual 50" plasma screens
• 16:9 high resolution wide screen format

Video Features

• Picture in Picture (PIP)
• Intelligent Video Management^TF

Video Standards

• H.261, H.263, H.263+, H.263++, H.264 (Natural Video^TF*)

Video Outputs (5 outputs)

• 1 x MiniDin, S-video: main monitor
• 1 x MiniDin, S-video: dual monitor
• 1 x RCA/Phono, composite: main monitor or VCR
• 1 x RCA/Phono, composite: dual monitor or VCR
• 1 x XGA: main monitor, dual monitor or XGA loop

Video Inputs (5 inputs)

• 1 x MiniDin, S-video: main camera
• 1 x MiniDin, S-video: auxiliary/document camera
• 1 x RCA/Phono, composite: document camera/aux
• 1 x RCA/Phono, composite: VCR
• 1 x XGA: PC

XGA Input/XGA Output

• Input: 640 x 480 - 1024 x 768, 56 - 85 Hz. auto-detection
• Output: 640 x 480 - 1024 x 768, 60 Hz

Live Video Resolutions

Native NTSC:

• 4SIF (704 x 480 pixels), Digital Clarity^TF
• Interlaced SIF^TF (352 x 480 pixels), Natural Video^TF
• SIF (352 x 240 pixels)

Native PAL:

• 4CIF (704 x 576 pixels), Digital Clarity^TF
• Interlaced CIF^TF (352 x 576 pixels), Natural Video^TF
• CIF (352 x 288 pixels)
• QCIF (176 x 144 pixels)
• SQCIF (128 x 96 pixels) decode only

Native PC Resolutions:

• XGA (1024 x 768)
• SVGA (800 x 600 pixels)
• VGA (640 x 480 pixels)

Video Format for the Tandberg 8000

• NTSC, PAL, VGA, SVGA or XGA

Still Image Transfer

• CIF, SIF, 4CIF (H.261 Annex D), 4SIF, VGA, SVGA, XGA

Audio Features

• Telephone add-on via MultiSite^TF
• Tandberg Natural Audio Module^TF II
• Four separate acoustic echo cancellers
• Audio mixer
• Automatic gain control
• Automatic noise reduction
• Audio level meters
• VCR ducking

Audio Standards

• G.711, G.722, G.722.1, G.728

Audio Outputs (3 outputs)

• 1 x RCA/Phono, Line Level: main audio
• 1 x RCA/Phono, Line Level: auxiliary
• 1 x RCA/Phono, Line Level: VCR

Audio Inputs (6 inputs)

• 3 x microphone, 24V phantom powered, XLR connector
• 1 x RCA/Phono, Line Level: audio mixer
• 1 x RCA/Phono, Line Level: auxiliary
• 1 x RCA/Phono, Line Level: VCR

Frame Rates - Point-to-Point and Multisite^TF Video Conferencing

• 15 frames per second @ 56 - 128 kbps
• 30 frames per second @ 168 kbps - 3 Mbps
• Point-to-point only: 60 fields per second @ 336 kbps - 3 Mbps(Natural Video^TF)

Multisite^TF Video Conferencing Features

• Support for ISDN or IP telephones
• ISDN & IP Downspeeding^TF at call set-up
• Dial in/Dial out capabilities
• Continuous Presence or Voice Switched
• Chair control for host system
• 5 sites including min. 1 telephone call
• Built-in MultiSite^TF audio bridge for up to 5 sites
• Built-in MultiSite^TF IP audio bridge for up to 4 sites
• DuoVideo^TF, Digital Clarity^TF, Natural Video^TF
• MultiSite^TF (H.243) Cascading over ISDN and IP
• Up to 10 video sites + 4 audio sites
• Any combination of IP & ISDN connections (transcoding)

MultiSite^TF over IP

• 4 sites @ 64 - 768 kbps + 1 telephone call over ISDN
• 3 sites @ 64 - 1 Mbps + 2 telephone calls over ISDN
• Point-to point @ 3 Mbps + 3 telephone calls via ISDN

MultiSite^TF over ISDN PRI/E1(T1)

• 4 sites @ 56 - 512 (384) kbps + 1 telephone call via ISDN
• 3 sites @ 56 - 768 (512) kbps + 2 telephone calls via ISDN
• Point-to point @ 56 - 1.5 (1) Mbps + 3 telephone calls via ISDN

MultiSite^TF over ISDN/6BRI

• 4 sites @ 256 kbps or 3 sites @ 384 kbps
• 4 sites @ 56 - 192 kbps + 1 telephone call via ISDN
• 3 sites @ 56 - 256 kbps + 2 telephone calls via ISDN
• Point-to-point @ 56 - 512 kbps + 3 telephone calls via ISDN

Network Features for the Tandberg 8000

• Auto H.320/H.323 dialing
• Downspeeding^TF
• Programmable network profiles
• Intelligent Call Management^TF
• HO on ISDN-PRI Facility
• Maximum call length timer
• Automatic SPID and line number configuration (National ISDN, GR-2941-CORE)
• SoftMux^TF
• NATO standard KG194/KIV-7 encryptor support
• H.331 Broadcast Mode

Embedded Encryption

• H.320 and H.323 point-to-point and multipoint video conferencing calls
• Standards-based: H.233, H.234, H.235, DES and AES
• Automatic key generation and exchange
• Supported in DuoVideo^TF

DuoVideo^TF

• Available on all networks
• Available from host system in MultiSite^TF (over IP & ISDN)

H.323 Video Conferencing Network Features

• Differentiated Services (DiffServ)
• Resource Reservation Protocol (RSVP)
• IP precedence
• IP type of service (ToS)
• Network Address Translation (NAT) support
• IP adaptive bandwidth management (including flow control)
• Auto gatekeeper discovery
• Dynamic playout and lip-sync buffering
• Intelligent Packet Loss Recovery^TF (IPLR^TF)

Tandberg 8000 Network Interfaces

• 6 x ISDN BRI (RJ-45), S-interface
• 1 x E1/T1 G.703 (RJ-45) for ISDN PRI or Leased E1/T1
• 1 x E1/T1 G.703 (RJ-45) for ISDN PRI cascading
• 1 x LAN/Ethernet (RJ-45) 10/100 Mbit (LAN/DS/cable modem)
• 1 x X.21/V.35/RS-449 with RS-366 dialing, leased line or data triggered mode

Security Features

• IP Password
• Menu Password
• Access code
• Streaming password
• H.243 MCU password
• VNC password
• SNMP security alert
• Encrypted HTTP password
• Possibility to disable IP services

Ethernet/Internet/Intranet/Connectivity

• TCP/IP, DHCP, ARP, FTP, Telnet, HTTP
• SNMP Enterprise Management
• Internal web server
• Internal streaming server (streams local and far-end site)
• 10/100 Mbit full/half duplex (manual or auto detect selection)

Other Major ITU Standards Supported

• H.320, H.323, H.235, H.233, H.234, H.281, BONDING (ISO 13871), H.231, H.243, H.331

W.A.V.E. (wide angle view) II Camera

• 10 x zoom
• 1/4" CCD
• +15�/-20� tilt
• +/-95� pan
• 61� vertical field of view
• 96� total vertical field of view
• 77� horizontal field of view
• 267� total horizontal field of view
• 460 (PAL)/470 (NTSC) TV lines
• Min. illumination 2 Lux (F1.8)
• Auto or manual focus/brightness/white balance
• Far end camera control
• 15 near and far-end camera pre-sets
• Voice-activated camera positioning
• Daisy chain support for up to 4 cameras
• VISCA camera support

Closed Captioning/Text Chat

• T.140 standards-based

Video Conferencing Presentations and Collaboration

• Natural Presenter Package including:
• PC Presenter^TF
• PC SoftPresenter^TF
• Digital Clarity^TF
• DuoVideo^TF
• Automatic selection of video or VGA on presentation monitor (second monitor)
• T. 120 Microsoft NetMeeting support via RS-232 (9-pin D-sub)
• Streaming compatible with Cisco IP/TV, Apple QuickTime, RealPlayer v8 etc.
• 50" (16:9) monitors, (1280 x 768 pixels) for local presentations

System Management for the Tandberg 8000

• Support for the Tandberg Management Suite Software
• Total management via embedded web server, SNMP,
• Telnet and FTP
• Remote software upload: during a call over all networks, via webserver or via FTP server
• 1 x RS-232 used for main camera control
• 1 x RS-232 for local software upgrades, local control and diagnostics
• Remote control and menu system

Directory Services

• 400 number worldwide directory
• 100 number local directory
• 16 dedicated MultiSite^TF video conferencing entries

Customized Boot Up Logo (JPEG)

Power

• 100 - 250V AC, 50 - 60 Hz
• 65 watts max. for codec and main camera
• 500 watts max. per monitor

10 Languages (selectable menu)

• Chinese, English, French, German, Italian, Japanese, Norwegian, Portuguese, Spanish and Swedish

Physical Dimensions

• Depth: 29.1"/74 cm
• Width: 33.9"/86 cm

*TF indicates Tandberg First
